How to fit your tribarsUpdated 39 minutes ago

Fitting your tablet holder is simple. Just follow the steps below.

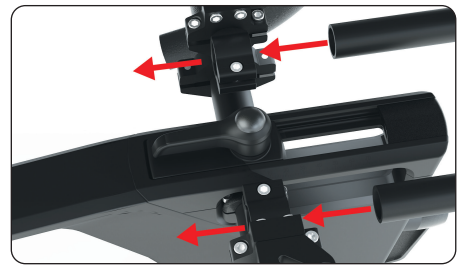

1. To attach the tablet holder, insert the ends into the tablet holder bracket. These brackets may need to be loosened/pulled apart slightly using a 4mm Allen key. Ensure the bracket and bolts are loose and insert the tablet holder so that the ends protrude only a short distance from the bracket. If they extend too far, users may catch their knees on the ends.

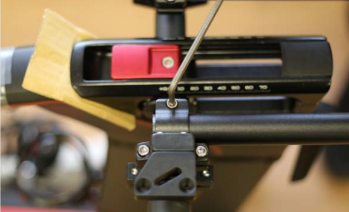

2. Tighten the bracket into place using the 4mm allen key.

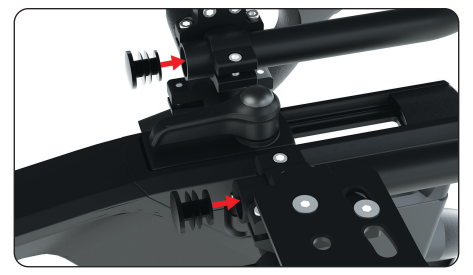

3. Push the bar end caps into place.

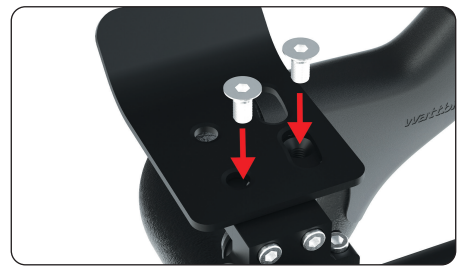

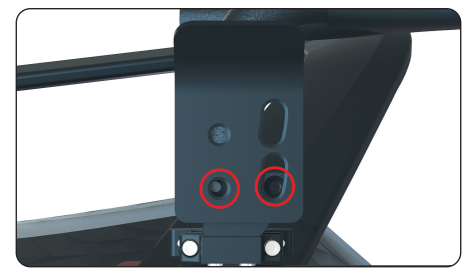

4. Attach the tri-pad mounting plate using a 4mm allen key. The tri pad brackets have variability in their adjustment and set up. The orientation of the tri pads and their associated brackets can be set to the user’s preference.

5. Once the mounting plate is positioned, remove the self-adhesive Velcro pad from the arm-pad and attach it to the mounting plate. Ensure to align the holes then attach the pad, ensuring that it fully covers the mounting plate.
