Getting started with your Wattbike Proton

This Wattbike Proton Quick Start Guide will show you how to build and set up your Proton, connect your devices and give you tips to get the most from your Proton’s features.

BUILD
1   Completely remove the four black retaining tabs and lift the top carton upwards to separate from the rest of the packaging.

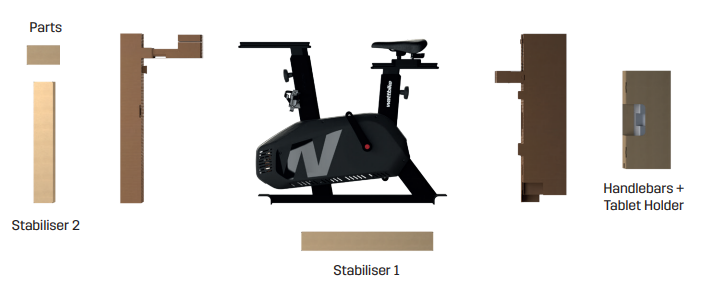

Unpack the components from within their separate boxes. The below diagram indicates where components are located.

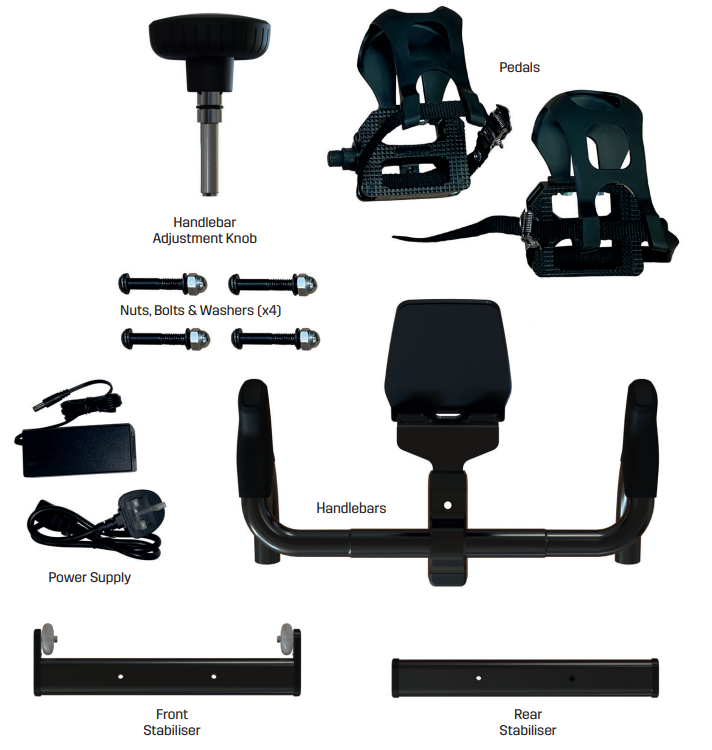

2    Check you have all tools and components ready to assemble:

Tools:
– 6mm Allen key
– 15mm pedal spanner
– 14 + 17mm spanners

      Components:

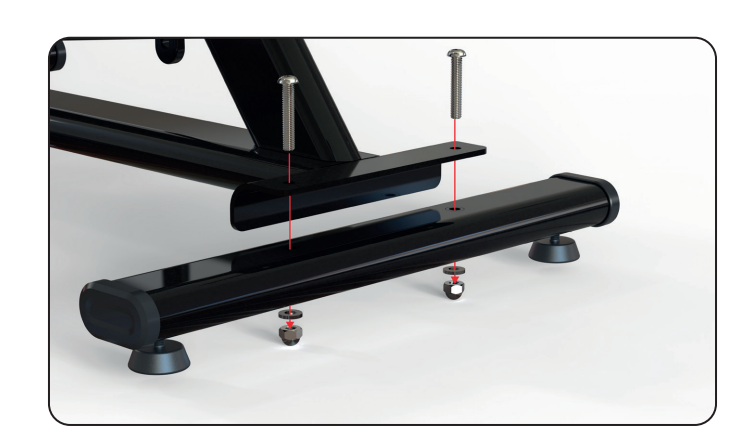

3    Raise the rear end of the main frame and attach the rear stabiliser (no wheels) using the nuts, bolts, washers and 6mm Allen Key and 17mm Spanner. Complete the same process for the front stabiliser (with wheels).

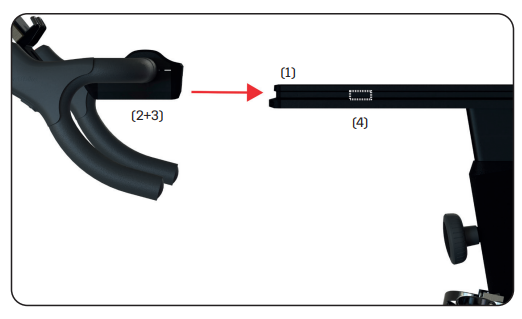

4    Remove the foam from the handlebar stem (1) and locate the handlebar (2) with the slider block (3) attached and slide the handlebars into position. The adjustment block (4) may need to be moved into a central position before attaching the handlebar and slider.

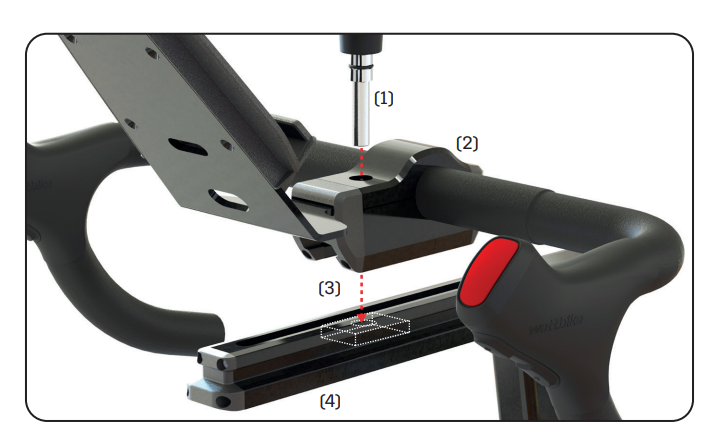

5   Thread the adjustment knob (1) through the hole in the handlebar carriage (2) and screw into the handlebar adjustment block (3) located within the handlebar stem (4).

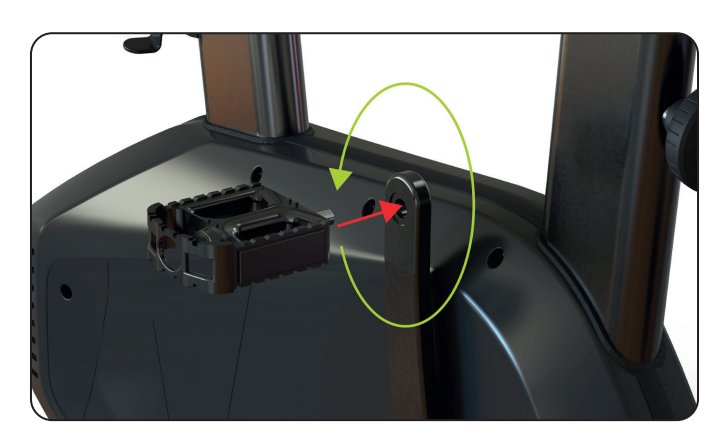

6   Attach the pedals (or fit your own) using the pedal spanner. Take care not to cross thread.

7   Bike Fit - adjust the handlebar stem, handlebars, seat post and saddle slider into your desired riding position. For further guidance go to support.wattbike.com

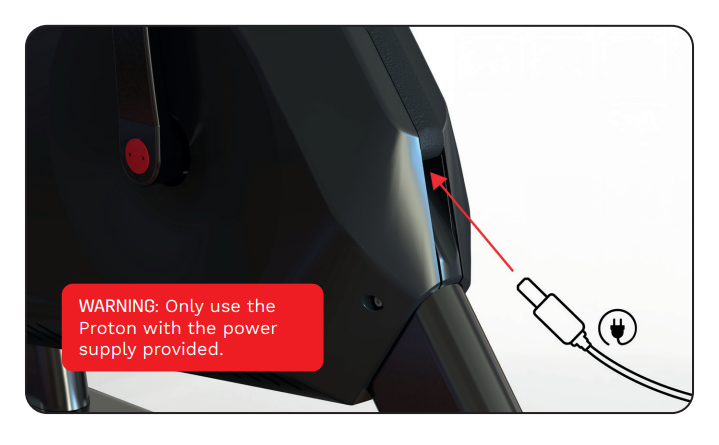

8    Plug the bike in using the 12v 5a power supply provided and connect to the Wattbike Hub using your mobile device. You may be asked to complete a firmware update on first connection.

GET CONNECTED

9    Once your Wattbike Proton is set up, you will need to link your devices before you can start riding.

1   Ensure your phone or tablet’s Bluetooth™ is turned on.
2   Download the Wattbike Hub app from your app store.

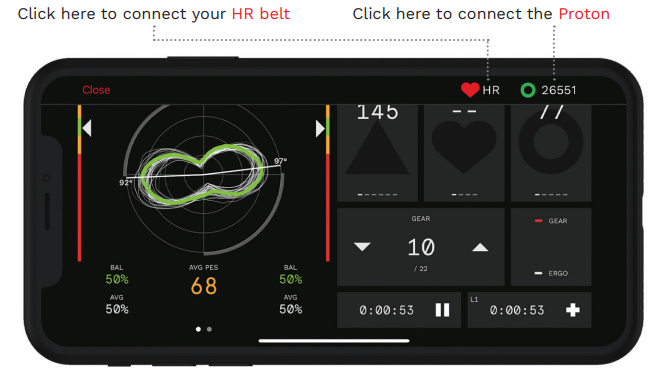

3   Open the app and login or sign up. To connect your Proton:
          • tap Quick Ride or the workout you’d like to do
          • tap Wattbike in the top right corner
          • select your Proton ID from the list.

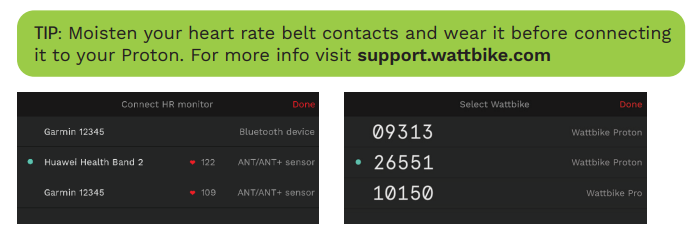

4   Connect your heart rate monitor. The Proton can connect to Bluetooth™, ANT+ and ANT (Suunto) heart rate monitors. They can be paired to the Wattbike Hub before starting your session or during your session when paused.

You can connect to other training apps via Bluetooth™ or ANT+, including:

RESISTANCE MODES

10    You have the ability to change between two resistance modes during a session:

Gear mode: Use the up and down buttons to change your gear. This mode is most like riding a bike. This is the default gearing mode for ‘quick ride’.

Ergo mode: In this mode, the Proton will hold you to a target wattage, regardless of your cadence. This is the default gearing mode for workouts. To switch between the modes, press the action button on the right shifter.

HOW TO USE THE SHIFTERS

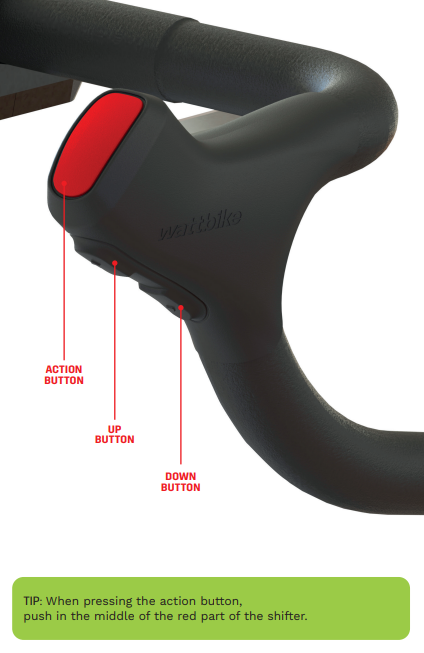

11   The shifters on your Proton control specific actions;

The shifter on the right:
• Action Button – resistance mode selection
• Up button:
       - Click: Increase Gear or Target Watts
       - Hold: Increase Gear or Target Watts + multiple changes
• Down button:
       - Click: Decrease Gear or Target Watts
       - Hold: Decrease Gear or Target Watts + multiple changes

The shifter on the left:
• Action Button: + 1 Lap (for Just Ride and Climb mode only)
• Up button:
     - Click: Scroll to next view
• Down button:
     - Click – Scroll to previous view
